תיאור

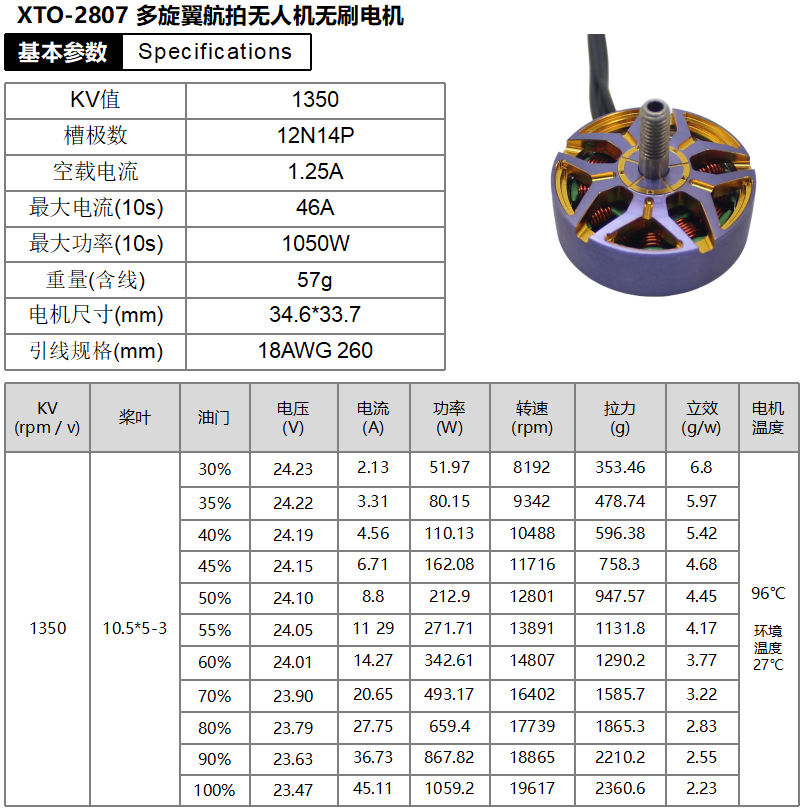

| פרמטר | ערך |
|---|---|
| KV rating | 1350 |
| Slots/Poles | 12N14P |
| ללא עומס זרם | 1.25A |
| Max current (10s) | 46A |
| Max power (10s) | 1050W |
| Weight (with wires) | 57g |

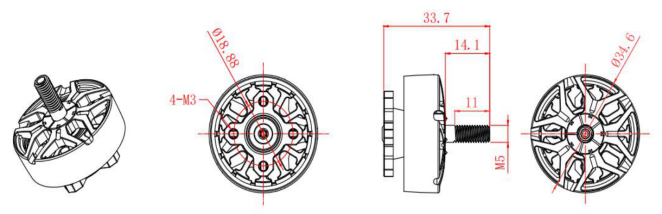

| Motor dimensions (mm) | 34.6*33.7 |
| Lead wire spec (mm) | 18AWG 260 |
| מַצעֶרֶת | מתח (V) | זרם (א) | Power (W) | מהירות (סל"ד) | Thrust (g) | Efficiency (g/W) | Motor temp (°C) |
|---|---|---|---|---|---|---|---|
| 30% | 24.23 | 2.13 | 51.97 | 8192 | 353.46 | 6.8 | 96 ℃ |
| 35% | 24.22 | 3.31 | 80.15 | 9342 | 478.74 | 5.97 | |
| 40% | 24.19 | 4.56 | 110.13 | 10488 | 596.38 | 5.42 | |
| 45% | 24.15 | 6.71 | 162.08 | 11716 | 758.3 | 4.68 | |
| 50% | 24.10 | 8.8 | 212.9 | 12801 | 947.57 | 4.45 | |
| 55% | 24.05 | 11.29 | 271.71 | 13891 | 1131.8 | 4.17 | |
| 60% | 24.01 | 14.27 | 342.61 | 14807 | 1290.2 | 3.77 | |
| 70% | 23.90 | 20.65 | 493.17 | 16402 | 1585.7 | 3.22 | |
| 80% | 23.79 | 27.75 | 659.4 | 17739 | 1865.3 | 2.83 | |
| 90% | 23.63 | 36.73 | 867.82 | 18865 | 2210.2 | 2.55 | |
| 100% | 23.47 | 45.11 | 1059.2 | 19617 | 2360.6 | 2.23 |
